Designing a Wind Turbine Gearbox Drivetrain

Gearboxes are where wind turbines fail most expensively, so the design task is not just fitting a ratio between rotor and generator — it is proving that every gear, shaft, bearing and joint survives twenty years of a load that constantly changes with the wind.

In a design course at TU Berlin, our team of three developed the complete drivetrain of a 200 kW variable-speed turbine with a 30 m rotor. Starting from the site’s wind speed distribution, we derived the operating envelope: cut-in at 3.5 m/s, pitch regulation from 9.6 m/s, and a rotor speed of 14 to 40 rpm feeding an asynchronous generator at 750 to 2250 rpm. That fixed the overall ratio at 52.2, split into a planetary stage (8.8) and a spur stage (5.9) to stay within practical spur-gear limits and keep the housing compact.

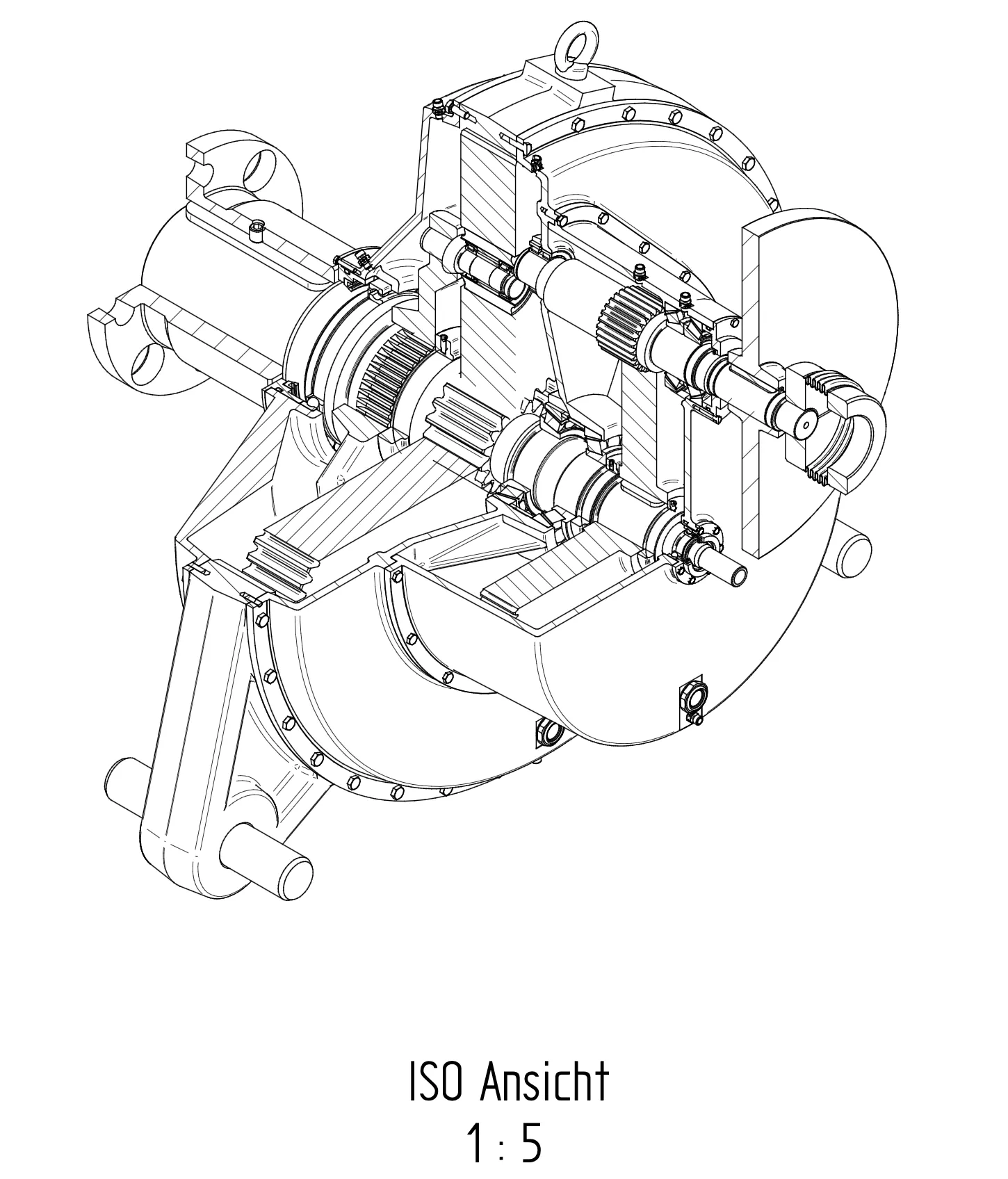

We integrated the wind distribution into four load spectra and used KISSsoft and KISSsys to size the gearing to DIN 3990, the shafts to DIN 743 and the bearings to an L10h life above 100,000 hours. The design included floating planet bearings on elastomer sleeves to share load evenly between the three planets, a three-part cast housing, spline and press-fit connections, and an emergency disc brake to DIN 15434. The full assembly was modelled in Solid Edge and delivered as detail drawings with assembly instructions.
